Introduction to VBA System Tray Notification

Have you seen those balloons that popup on your start menu when an application is finished installing or updates are available? You know the ones. Wouldn’t it be great if you could make one of those when your Excel macros are done running?

Now you can!

Learn how to show a system tray notification balloon in your start menu the moment your macro is done by following this awesome Excel VBA tutorial. This is great when you’re running a macro that takes a really long time.

By following this tutorial, you’ll be free to let your macros run in the background while you catch up on some social media posts. The moment your macro is finished, you’ll get a notification balloon in your system tray telling you your macro is done.


How to Show a System Tray Notification Balloon

To create a System Tray Notification Balloon using Excel VBA, you need to create two items in your VBA editor:

  1. Create a blank UserForm and rename it ufDone.
  2. Create a new Module.

Your Project Explorer Pane should look something like this:

Project Explorer Pane

The UserForm will never be shown so it really can be blank. Trust me!

For Windows 10, you don’t technically need the UserForm for your balloons to pop-up, but you’d have to modify the code I present below to omit it. You might as well just stick with what I have.

There are two more steps you must do to create the Excel system tray notification functionality.


Paste this Code into your UserForm

Once you’ve created your UserForm and renamed it to ufDone, paste the following VBA code into the Code section of your UserForm:

'***** Paste this in the code section of a  UserForm titled "ufDone" *****
Private Sub UserForm_Initialize()
Me.Hide
End Sub

Private Sub UserForm_Activate()
Dim Me_hWnd As Long, Me_Icon As Long, Me_Icon_Handle As Long, IconPath As String

Me.Hide
RemoveIconFromTray
Unhook
IconPath = Application.Path & Application.PathSeparator & "excel.exe"
Me_hWnd = FindWindowd("ThunderDFrame", Me.Caption)
Me_Icon_Handle = ExtractIcond(0, IconPath, 0)
Hook Me_hWnd
AddIconToTray Me_hWnd, 0, Me_Icon_Handle, ""
BalloonPopUp_1
Unload Me
End Sub
'*************************************************************************

Remember, you can access the Code section by right-clicking your UserForm and selecting “View Code.”


Your time is valuable. It's time to become a VBA expert.

Paste this Code into your Module

Now that your UserForm is complete, there’s just one more snippet of code to paste. This time, copy and paste the following macros into the new module you created. In my example, the module is named Module1 but you can name your module whatever you want. Unlike the name of your UserForm, the name of your Module isn’t important.

These macros are going to look complicated, but don’t worry! This is all background junk - I’ll make it super easy for you to create the balloon notifications.

Anyway, here’s the code you need to copy and paste into your module:

'***** Paste this code into your Module *****
Option Explicit
#If VBA7 Then
    Declare PtrSafe Function SetForegroundWindow Lib "user32" (ByVal hWnd As Long) As Long
    Declare PtrSafe Function Shell_NotifyIcon Lib "shell32.dll" Alias "Shell_NotifyIconA" (ByVal dwMessage As Long, lpData As NOTIFYICONDATA) As Long
    Declare PtrSafe Function CallWindowProc Lib "user32" Alias "CallWindowProcA" (ByVal lpPrevWndFunc As Long, ByVal hWnd As Long, ByVal Msg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
    Declare PtrSafe Function SetWindowLong Lib "user32" Alias "SetWindowLongA" (ByVal hWnd As Long, ByVal nIndex As Long, ByVal dwNewLong As Long) As Long
    Declare PtrSafe Function FindWindow Lib "user32" Alias "FindWindowA" (ByVal lpClassName As String, ByVal lpWindowName As String) As Long
    Declare PtrSafe Function ExtractIcon Lib "shell32.dll" Alias "ExtractIconA" (ByVal hInst As Long, ByVal lpszExeFileName As String, ByVal nIconIndex As Long) As Long
#Else
    Declare Function SetForegroundWindow Lib "user32" (ByVal hWnd As Long) As Long
    Declare Function Shell_NotifyIcon Lib "shell32.dll" Alias "Shell_NotifyIconA" (ByVal dwMessage As Long, lpData As NOTIFYICONDATA) As Long
    Declare Function CallWindowProc Lib "user32" Alias "CallWindowProcA" (ByVal lpPrevWndFunc As Long, ByVal hWnd As Long, ByVal Msg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
    Declare Function SetWindowLong Lib "user32" Alias "SetWindowLongA" (ByVal hWnd As Long, ByVal nIndex As Long, ByVal dwNewLong As Long) As Long
    Declare Function FindWindow Lib "user32" Alias "FindWindowA" (ByVal lpClassName As String, ByVal lpWindowName As String) As Long
    Declare Function ExtractIcon Lib "shell32.dll" Alias "ExtractIconA" (ByVal hInst As Long, ByVal lpszExeFileName As String, ByVal nIconIndex As Long) As Long
#End If
Public Const WM_LBUTTONDOWN = &H201
Public Const WM_LBUTTONUP = &H202
Public Const WM_LBUTTONDBL = &H203
Public Const WM_RBUTTONDOWN = &H204
Public Const WM_RBUTTONUP = &H205
Public Const WM_RBUTTONDBL = &H206
Public Const WM_ACTIVATEAPP = &H1C

Public Const NIS_HIDDEN = &H1
Public Const NIS_SHAREDICON = &H2
Public Const NIF_ICON = &H2
Public Const NIF_MESSAGE = &H1
Public Const NIF_TIP = &H4
Public Const NIF_STATE = &H8
Public Const NIF_INFO = &H10
Public Const NIM_ADD = &H0
Public Const NIM_MODIFY = &H1
Public Const NIM_DELETE = &H2
Public Const WM_MOUSEMOVE = &H200
Public Const MAX_TOOLTIP As Integer = 128
Public Const GWL_WNDPROC = (-4)

'shell version / NOTIFIYICONDATA struct size constants
Public Const NOTIFYICONDATA_V1_SIZE As Long = 88  'pre-5.0 structure size
Public Const NOTIFYICONDATA_V2_SIZE As Long = 488 'pre-6.0 structure size
Public Const NOTIFYICONDATA_V3_SIZE As Long = 504 '6.0+ structure size
Public NOTIFYICONDATA_SIZE As Long

Type NOTIFYICONDATA
   cbSize As Long
   hWnd As Long
   uID As Long
   uFlags As Long
   uCallbackMessage As Long
   hIcon As Long
   szTip As String * MAX_TOOLTIP
   dwState As Long
   dwStateMask As Long
   szInfo As String * 256
   uTimeout As Long
   szInfoTitle As String * 64
   dwInfoFlags As Long
End Type

Public nfIconData As NOTIFYICONDATA

' list the icon types for the balloon message..
Public Const vbNone = 0
Public Const vbInformation = 1
Public Const vbExclamation = 2
Public Const vbCritical = 3


Private FHandle As Long
Private WndProc As Long
Private Hooking As Boolean

Public Sub Hook(Lwnd As Long)
If Hooking = False Then
  FHandle = Lwnd
  WndProc = SetWindowLong(Lwnd, GWL_WNDPROC, AddressOf WindowProc)
  Hooking = True
End If
End Sub

Public Sub Unhook()
If Hooking = True Then
  SetWindowLong FHandle, GWL_WNDPROC, WndProc
  Hooking = False
End If
End Sub

Public Function WindowProc(ByVal hw As Long, ByVal uMsg As Long, ByVal wParam As Long, ByVal lParam As Long) As Long
If Hooking Then
  If lParam = WM_LBUTTONDBL Then
   ufDone.Show 1
   WindowProc = True
'   Unhook
   Exit Function
  End If
  WindowProc = CallWindowProc(WndProc, hw, uMsg, wParam, lParam)
End If
End Function

Public Sub RemoveIconFromTray()
Shell_NotifyIcon NIM_DELETE, nfIconData
End Sub

Public Sub AddIconToTray(MeHwnd As Long, MeIcon As Long, MeIconHandle As Long, Tip As String)
With nfIconData
  .hWnd = MeHwnd
  .uID = MeIcon
  .uFlags = NIF_MESSAGE Or NIF_ICON Or NIF_TIP
  .uCallbackMessage = WM_RBUTTONUP
  .dwState = NIS_SHAREDICON
  .hIcon = MeIconHandle
  .szTip = Tip & Chr$(0)
  .cbSize = NOTIFYICONDATA_V3_SIZE
End With
Shell_NotifyIcon NIM_ADD, nfIconData
End Sub

Function FindWindowd(ByVal lpClassName As String, ByVal lpWindowName As String) As Long
FindWindowd = FindWindow(lpClassName, lpWindowName)
End Function

Function ExtractIcond(ByVal hInst As Long, ByVal lpszExeFileName As String, ByVal nIconIndex As Long) As Long
ExtractIcond = ExtractIcon(hInst, lpszExeFileName, nIconIndex)
End Function

Public Sub MacroFinished()
ufDone.Show 1
End Sub

Public Sub BalloonPopUp_1()
    With nfIconData
        .dwInfoFlags = vbInformation
        .uFlags = NIF_INFO
        .szInfoTitle = ActiveWorkbook.Name & vbNullChar
        .szInfo = "Your Macro Has Finished." & vbNullChar
    End With

    Shell_NotifyIcon NIM_MODIFY, nfIconData

End Sub
'********************************************

That’s it! Now for the fun part. It’s time to test out your notification tray balloons!


Your time is valuable. It's time to become a VBA expert.

How to Display Notification when Macro is Finished

I’ve made it really easy to display a notification when your macro is done. All you have to do is call the procedure MacroFinished right before you exit your macro.

For example, let’s say I have a really long code running. When I want to notify myself that my macro is done, I would call the MacroFinished subroutine, like this:

Sub ReallyLongMacro()
'-----
' your
' really
' long
' code
' goes
' here
'-----
MacroFinished
End Sub

You literally just type that one phrase “MacroFinished” right before your End Sub statement in your VBA macro and you’ll get notified in your System Tray. VBA is great, isn’t it?

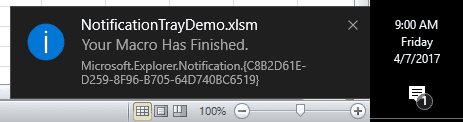

Here’s what the notification balloon looks like on Windows 10:

Windows 10 VBA Notification Tray Balloon

And here’s what it looks like on Windows 7:

Windows 7 VBA Notification Tray Balloon

Notifications show up in your start menu, just like any other notification! On Windows 10, you’ll even see it queued up in your Action Center.

The macro is designed to work on 32-bit and 64-bit Windows operating systems.


Comments

I hope you enjoyed this tutorial. This is one of the more creative VBA solutions I’ve presented in a while
