Introduction - VBA InStr
The VBA InStr function is one of the most useful string manipulation functions around. You can use it to test if a string, cell or range contains the substring you want to find. If it does, “InStr” will return the position in the text string where your substring begins. This is great if you are looping through a file or spreadsheet and want to take an action when you find a matching string.
Keep reading to find out how you can use InStr in your VBA macros to search for a substring! I’ll provide all the examples you could possibly want to help get you started.
Example - VBA InStr
Let’s say you have a list of names in an Excel spreadsheet or text file. Beside each name, you have information about that person. It could be anything - email addresses, phone numbers, employee IDs, countries. This is a common structure for spreadsheets or databases.
Your boss asks you to summarize information about every person that meets a certain criteria. The VBA InStr function is great at handling tasks like these.
For this example, I’m going to start with a list of US Presidents.

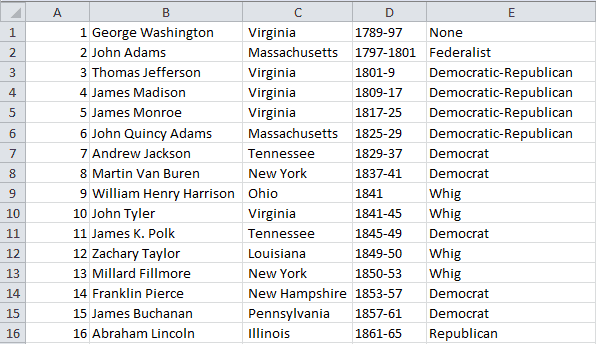

VBA InStr Tutorial Data
Yes, I understand this is a silly example because you can just use regular Excel filtering to solve that problem, but where’s the fun in that? Familiarizing yourself with VBA InStr allows you to do so much more than simple filtering.
Let’s find all the instances of Presidents with “James” in their name and summarize the results:
Find Substrings using InStr
Sub InStrDemo() Dim lastrow As Long Dim i As Integer, icount As Integer lastrow = ActiveSheet.Range("A30000").End(xlUp).Row For i = 1 To lastrow If InStr(1, LCase(Range("B" & i)), "james") <> 0 Then 'Perform your action here icount = icount + 1 Range("H" & icount & ":L" & icount) = Range("A" & i & ":E" & i).Value End If Next i End Sub
Your time is valuable. It's time to become a VBA expert.
This macro loops through the entire column of data and finds strings that contain the substring “james” by using the InStr function. Once it finds a match, it copies the data to a separate portion of the Excel spreadsheet.

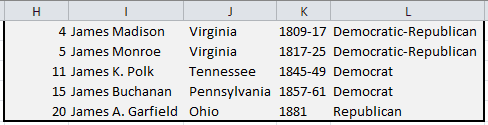

VBA InStr Tutorial Results
If you’re ready to learn more, the following sections show you how InStr works and how you can use to do more helpful tasks - more examples below!
Tutorial - VBA InStr
InStr VBA function accepts 4 arguments, 2 of which are optional:
InStr([Start], MainString, SubString, [Compare As VbCompareMethod])
Here’s a description of the arguments:
|Start||[Optional] This is the positive integer position where you want your string to begin searching for SubString inside MainString. If omitted, it starts from the beginning (position 1). A value less than or equal to 0 yields an error.|
|MainString||The string you want to search within. You want to search for SubString inside of MainString.|
|SubString||The substring you want to search for. You want to search for SubString inside of MainString|
|Compare||[Optional] This tells VBA which algorithm to use when comparing. There are three possible choices, described below.|
Here are the three possible VbCompareMethods for the Compare argument:
- vbBinaryCompare (Default)
The default, vbBinaryCompare, is adequate for the vast majority of applications, so I’m not going to waste time explaining each algorithm. Leave a comment in the comments section if you want me to dive into more detail.
Now that we got the arguments out of the way, let’s talk fundamentals.
InStr returns an Integer - actually a Variant of type Long - showing where the substring occurs in the main string.
If the substring does not exist, it returns a value of 0. That’s why InStr is so useful! If you only want to take an action when a string contains a substring and you don’t care where the substring is you just check to see if the InStr result does not equal 0.
If InStr(MainString, SubString) <> 0 Then
The InStr vbBinaryCompare is case-sensitive. If you want to search for a substring inside a main string and you’re not worried about case sensitivity, it’s a good practice to wrap your MainString and SubString arguments in the LCase function. You could use the vbTextCompare algorithm, but it’s a little buggy. It’s especially buggy when handling rare characters.
If InStr(LCase(MainString), LCase(SubString)) <> 0 Then
Take a look at these InStr Examples to better illustrate these fundamentals. They start off simple, but get more advanced as you go.
More InStr Examples
Return the Substring Position using InStr
i = InStr("This is a test", "test")
i = InStr("This is a test", "t")
i = InStr("This is a test", "T")
i = InStr(1, LCase("This is a test"), "t")
i = InStr("This is a test", "s")
i = InStr(5, "This is a test", "s")
i = InStr(100, "This is a test", "s")
i = InStr(100, "This is a test", "hello")
Check if String Contains Substring (Case-Insensitive)
Sub SubstringCheck() Dim MainString As String 'String1 Dim SubString As String 'String2 '---INPUT--- MainString = Range("A1") SubString = "gmail" '----------- If InStr(LCase(MainString), LCase(SubString)) <> 0 Then 'MainString contains the SubString ElseIf InStr(LCase(MainString), LCase(SubString)) = 0 Then 'MainString does NOT contain the SubString End If End Sub
It’s that simple! This is the approach I took in my Presidents example. The only differences was that I enclosed the InStr search inside a For Loop so I could test all the values.
If String Contains Substring, take action on next 10 lines (Case-Sensitive)
Sub InStrTakeNext10() Dim MainString As String 'String1 Dim SubString As String 'String2 Dim lastrow As Long, lCount As Long Dim i as Integer, j as Integer '---INPUT--- SubString = "Top 10" 'Also adjust the MainString line in the For Loop '----------- lastrow = ActiveSheet.Range("A30000").End(xlUp).Row For i = 1 To lastrow MainString = Range("A" & i) If InStr(MainString, SubString) <> 0 Then 'MainString contains the SubString For j = i + 1 To i + 10 'Copy the next 10 lines to Column H lCount = lCount + 1 Range("H" & lCount) = Range("A" & j) Next j i = i + 10 'skip the next 10 cells End If Next i End Sub
I find myself using a macro like the one above all the time when working with Fixed Width Text Files. I search for a certain string, then extract a portion of the lines that follow using VBA.
To give you a real-life example from my nuclear engineering job, I use InStr to extract control blade patterns or axial power profiles from our core monitoring system ASCII output files.
Read on to find out more uses for the VBA InStr function.
My uses for the VBA InStr function usually fall into 2 categories
- Advanced Filtering
- Data Extraction
One Advanced Filtering idea is to export the names and contact information of every client/employee from a certain state/country. You can automatically save the data to a text file or send those people an email using VBA!
A complex Data Extraction application is to scrub the HTML of a website, search for a string and extract the information that follows. You can use this to pull stock market data from a financial website, for example.
To be honest, I rarely use InStr to actually return the position of a substring within another string. One of the only times I do that is when I want to extract a file name, folder path or URL from the middle of a complex string.
To do that, I pair the InStr function with its brother, the InStrRev function, and its cousin, the Mid function.
I hope you found this VBA InStr tutorial useful! If you did, subscribe to my email list. Please share this article on Facebook, Twitter or your favorite social media platform and follow me on Google+ for more great VBA content.
If you’re working on an Excel VBA project, but you can’t quite figure out how to finish it, don’t forget you can ask for my help via my VBA Consulting service page.
